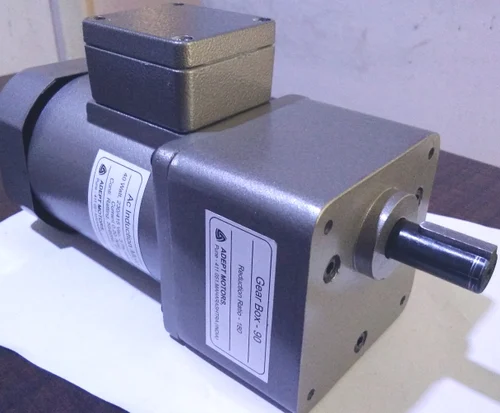

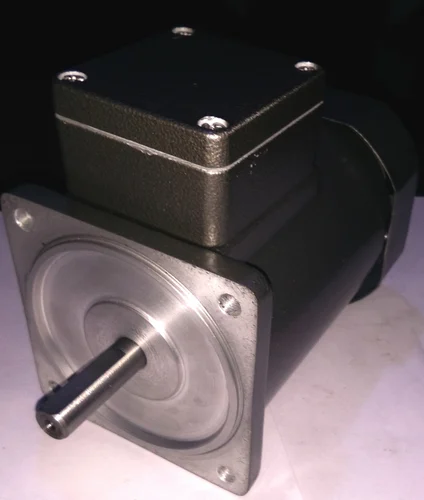

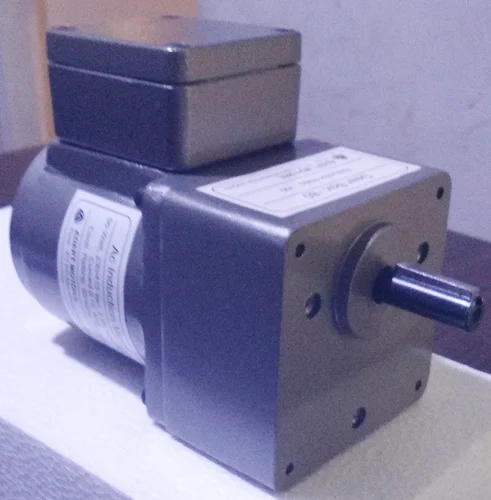

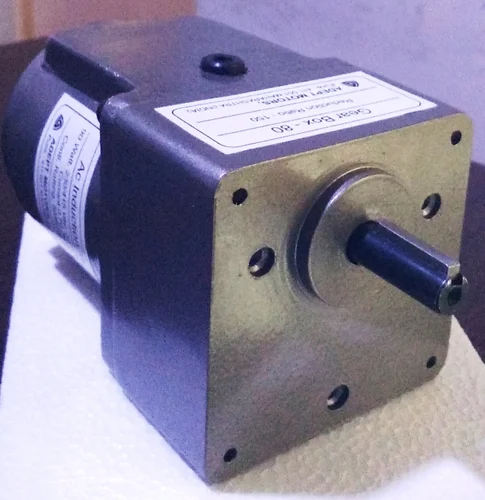

200 Watt Induction Motors

Rs 5,500/ piece

Frame Size: 90 x 90 mm

Continuous rating, TEFC Aluminum body Rotates in clockwise or counter clockwise direction. Direction of rotation can be reversed Overruns for a few rotation after supply is cut off Speeds are 2880 / 1440 RPM and further low speeds with gearbox Terminal box or open lead wires for connection

IP Rating	IP55
Frame	90 S
Pole	4
Speed	1000-1500 RPM
Phase	Three Phase

Establishe in 2014, We, Adept Motors are the manufacturer of Induction Motor, Brake Motor, Electromagnetic Brake, Frame Motors, Worm Gear Box and Gear Motor.

Enquiry Now Save

Specification

Model	Output Power	Frequency	Supply Voltage	Current A	Starting Torque	Rated Torque Kg-cm	Rated Speed RPM	Capacitor F
90 IW 4G200	200	60	Single phase 110 V	3.0	5.0	5.7	3000	18
90 IX 4G200	200	50	Single phase 230 V	1.2	6.0	6.9	2700	6
90 IY 4G200	200	60	Three phase 230 V	1.2	1500	12.3	11.1	1500
90 IY 4G200	200	50	Three phase 230 V	1.2	15.9	15.9	1350
90 IY 4G200	200	50	Three phase 415 V	1.2	15.9	15.9	1350

Similar items

Reversible Motor Rs.2200

180 watt induction motor Rs.5800

90 Watt Induction Gear Motor Rs.3300

Brake Rs 3000

Gear motor Torque Table:

The maximum permissible torque is 200 kg.cm

50 HZ

RPM	500	416	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	13	10	8.3
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	36	42	60	70	88	106	135	160	192	200	200	200	200	200	200	200	200	200	200	200

60 HZ

RPM	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	28	34	48	56	72	86	106	128	154	194	200	200	200	200	200	200	200	200	200	200

The Gearheads are sold separately.
